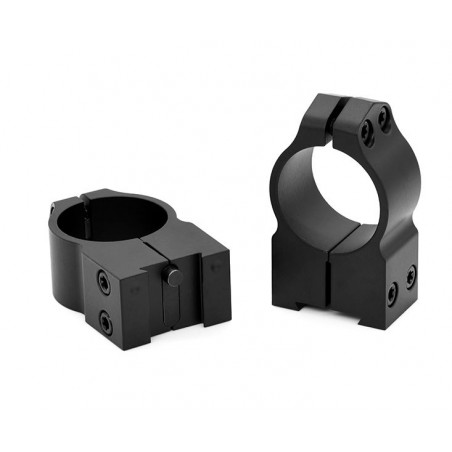

Warne 14TM 30mm Tikka Fixed Medium Matte Rings

Since each firearm manufacturer has their own proprietary mounting rail design, each ring model must be machined to exacting tolerances for proper fit and function. Because of this, the Warne Tikka Rings are able to fit right onto the receiver’s dovetail with no need for a mounting base.
The Tikka Fixed Rings utilize 4 T-15 Torx style socket cap screws for secure and permanent optics mounting and also feature a redesigned recoil pin to provide a stronger bearing surface for higher recoiling rifles.

• Permanently attaches to base.
• Tikka specific recoil pin for positive engagement of ring to receiver dovetail.
• Rings securely mount around scope using 4 Torx style T-15 socket cap screws, 25 in/lb. of torque recommended, but also check for your scope manufacturer!

Remove the 4 screws from both rings. Place the scope in the ring halves and re-insert recoil key. Start all 4 screws on both rings and move scope with rings to your scope bases. Place rings onto the bases with the recoil keys in the slots. Push each ring towards the muzzle to seat the recoil key and tighten only the bottom screws to 25in/lb* max. Adjust eye relief and level the reticle. Once both are correct, tighten the top screws on both rings to 25 in/lb* max.
