Forster Quick-Change Jaws for Co-Ax Press S-Large

Quick-change Jaws for the Forster Co-Ax® Press let you swap Shell Holder Jaw sizes in seconds without disassembling the press. While a case is held in the Quick-change Lower Shell Holder Jaws, it's supported by spring-loaded jaws that contact the base of the cannelure for more positive extraction.

The jaws are self-acting: when a cartridge is placed in the die and the Co-Ax Press handle is activated, the jaws open and close on the case automatically, then release the case when the handle is raised.

This complete assembly contains everything needed to easily swap out a single side of the "S" or "LS" Shell Holder Jaws for all compatible cases, in any of these configurations:

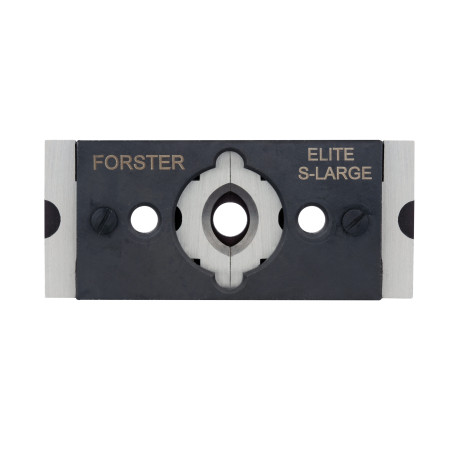

• S-Large – holds .468″ to .562″ rim

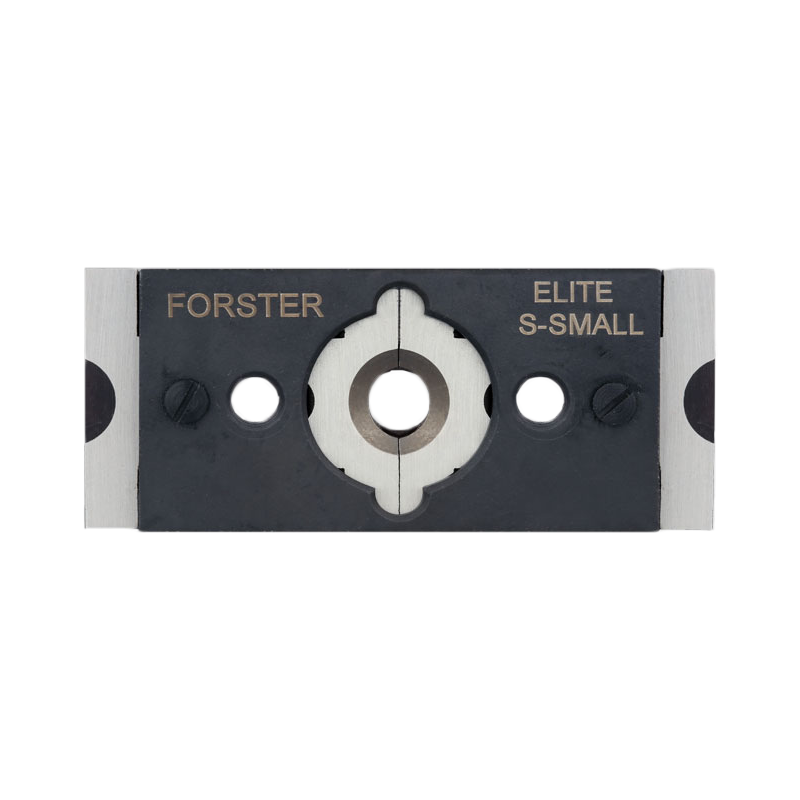

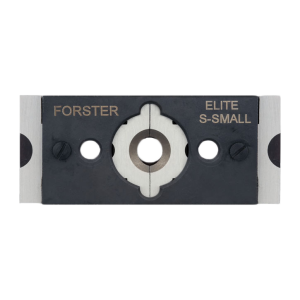

• S-Small – holds .343″ to .422″ rim
• LS-Large – holds .531″ to .625″ rim
• LS-Small – holds .312″ to .375″ rim

Simply remove the 10-24 x ⅝" Button Head Screws (028271-020) and replace the jaws to prepare for the next case and die size — no need to take apart the Shell Holder Jaws.

Benefits

• Saves time when changing calibers that require turning the jaws 180° or switching from "S" to "LS"
• Avoids frustration of losing springs or misplacing extra jaw sets
• Foolproofs the changeover, preventing incorrect assembly of the wear plate or jaws
